N264 Non-Automatic Sewage Pump
Revision A

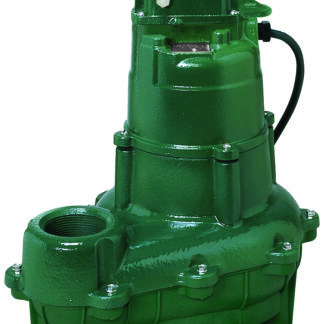

Zoeller’s non-automatic sewage pump, model N264, used in residential and light commercial applications.
Select the revision code from your pump tag, then see parts break-down to choose the right service parts.
| REF# | P/N | DESC | |
|---|---|---|---|
| 1 | 034046 | Gasket Cover | Add to cart |
| 2 | 004200 | Strain Relief Clamp | Add to cart |
| 3 | 006923 | Cord Seal Assembly | Add to cart |
| 4 | 010927 | Cord Assembly | Add to cart |
| 5a | 012084 | Stator with Screws | Add to cart |
| 5c | 010271 | Stator with Screws | Add to cart |
| 6a | 012085 | Rotor Assembly | Add to cart |
| 6b | 010270 | Rotor Assembly | Add to cart |
| 7 | 034007 | Motor Housing Seal | Add to cart |
| 8 | 002140 | Rotor Thrust Washer | Add to cart |
| 9 | 007051 | Dielectric Oil | Add to cart |
| 10 | 010718 | Pump Housing | Add to cart |
| 11 | 267027 | Shaft Seal Assembly | Add to cart |
| 12 | 002570 | Impeller | Add to cart |
| 13 | 005199 | Base | Add to cart |
| 14 | 002580 | Cover & Handle | Add to cart |
| 15 | 034090 | White Test Plug | Add to cart |
| 16 | 003402 | Thru-Wall Terminal Seal | Add to cart |
| 17 | 004712 | Motor Housing Assembly | Add to cart |
| 18 | 007642 | Capacitor | Add to cart |
| 19 | 001885 | Screw | Add to cart |
| 20 | 005326 | Screw | Add to cart |
| 21 | 001914 | Stator Screw | Add to cart |
| 22 | 001877 | Screw | Add to cart |
| 23 | 005701 | O-Ring Seal | Add to cart |
| *** | 011515 | Rebuild Kit | Add to cart |
